Viking Wall Oven Repair: Drift, Elements, Latch

A wall oven is the hardest appliance in the kitchen to judge by eye. A range tells you something is wrong the moment a burner refuses to light. A built-in oven will run an entire bake cycle at the wrong temperature and report nothing at all. The complaint that reaches us is almost never “the oven is broken” — it is that bread is browning on one side, or that a roast needed another forty minutes, or that the same recipe stopped working.

Temperature is a measurement problem before it is a heating problem

The oven does not know how hot it is. It knows what a resistance probe tells it, and it heats until that number matches the setpoint. When the probe drifts, the control does exactly what it was designed to do and holds the oven at the wrong temperature with complete confidence. Nothing on the display looks wrong, because from the control’s point of view nothing is.

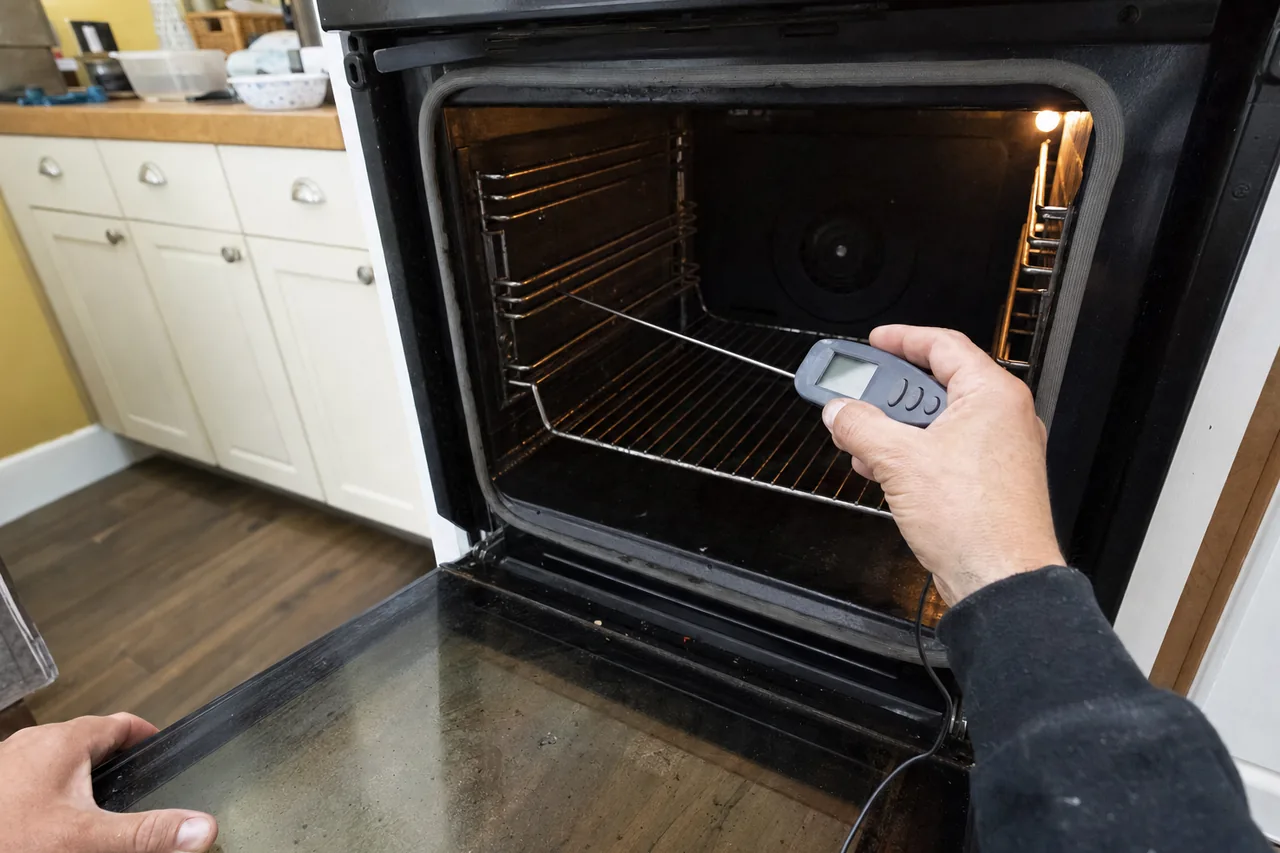

So the first thing we do on a temperature complaint is measure the cavity independently and compare it against what the control believes. That one reading separates a sensor fault from an element fault from a control fault, and it takes minutes. Replacing an element on a drift complaint is the most common wasted repair we get called in to correct.

What actually breaks in Clay County ovens

Four faults account for most of the wall oven work in this territory. They are worth recognising by symptom, because the symptom rarely names the part, and none of the four reliably announces itself with a code on the display.

Elements. A bake or broil element fails open, usually at a bend or at the terminal, and the oven then heats from one direction only. The symptom is uneven browning long before it is a no-heat.

The self-clean cycle. Pyrolytic cleaning drives the cavity far above any cooking temperature, and it is the most punishing hour a wall oven ever experiences. Door latch motors, thermal fuses and control boards fail during or just after self-clean more than at any other time. If your oven died on a cleaning cycle, that is not a coincidence and it usually is not the element.

Doors. A wall oven door carries real mass on two hinges. As the hinge bushings wear and the springs relax, the door stops pulling flush along its top edge. Heat leaves through that gap, the control compensates by running the element longer, and the complaint arrives as a temperature problem. We check door closure on every temperature call for exactly this reason.

Boards after storms. The Jacksonville area records roughly 68 thunderstorm days a year. Surge damage to an oven control rarely announces itself at the moment of the strike. The board keeps working, then begins failing to wake, then stops. An oven that has been intermittent since a summer outage is describing a board, not a mystery.

Supply, and what a built-in oven needs from it

A wall oven is a fixed appliance on a circuit of its own, and a share of what presents as an oven fault is really a supply fault. On a unit fed by two legs, losing one leaves the appliance apparently alive — the display lights, the fan runs, the control accepts a setpoint — while the elements never come up to heat. It reads as a dead element and it is not.

So the supply gets checked before parts are discussed: both legs at the appliance, the connections in the junction box behind it, and the terminal block itself, which sits in the hottest part of the installation and is a genuine failure point on equipment of this age. A discoloured or loosened terminal is worth finding before it becomes something worse, and it is not something anyone can diagnose from the front of the oven.

Double ovens and the shared-control question

On a double wall oven, the two cavities usually share a control and a supply but not their heating circuits. That makes the fault pattern diagnostic in itself. If the upper cavity is dead and the lower one is normal, the shared control is probably fine and the problem is downstream. If both cavities lost function at the same moment, look upstream — at the control, the supply, or the storm that preceded it.

Access is part of the job

Wall ovens are heavier than they look and they come out of cabinetry that was built around them. In the older Orange Park housing off Kingsley Avenue and along the river, the cabinet opening was frequently sized for an oven that is no longer made, and the current appliance sits in it with almost no clearance. We plan the pull before we start it, protect the floor and the face frame, and we do not force anything. If a replacement will not fit the existing opening, we tell you that during the diagnostic rather than after the old unit is out on the kitchen floor.

What the visit costs

The diagnostic is a flat $80, credited toward the repair when you approve the work. You get a written estimate before any part is ordered or any labour is billed. Parts are genuine OEM, and the work carries 90 days on labour and 365 days on parts.
